General performance and mechanical performance

Parameter

Unit

Weight

100

g

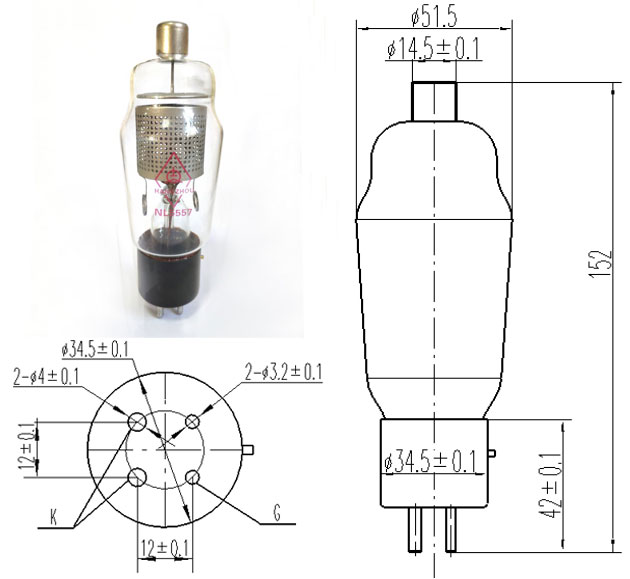

Hight

≤152

mm

Installation Location

Axial vertical installation

Ambient temperature

5 to 50

℃

Cooling condition

Natural cooling

Service life

≥500

h

Electrical parameters

Rated value

Unit

Filament voltage

2.5

V

Filament current

5

A

Tube Voltage drop

10

V

Anode-grid capacitance

1.8

pF

Positive anode peak voltage

2500

V

Peak reverse anode voltage

5000

V

Average anode current

0.5

A

Peak anode current

40

A

Ignition voltage

100 to 500

V

Anode Current when Grid voltage=0

10

A

Ionization time

10

μS

Deionization time

1000

μS

Frequency

25

Hz

Electrical parameters Limit value

Min.

Max.

Unit

Filament voltage

2

3

V

Filament current

4.5

5.5

A

Anode voltage

2500

V

Anode current

0.5

40

A

Filament voltage

2.5

V

Filament current

5

A

Grid voltage

-15

V

Anode voltage

1000

V
