General performance and mechanical performance

Parameter

Unit

Weight

120

g

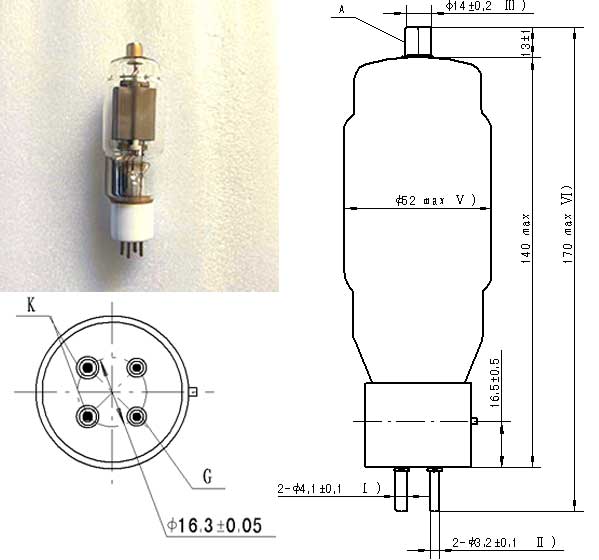

Hight

≤170

mm

Installation location

Axial vertical installation

Cooling condition

Natural cooling or forced air cooling

Service life

≥500

h

Electrical parameters Rated value

Rated value

Unit

Filament voltage

6.3

V

Filament current

4

A

Input capacitance  Ckg

6

pF

Output capacitance Cka

0.8

pF

Cross-circuit capacitance Cga

6

pF

Cathode-grid insulation resistance

≥200

MΩ

Anode- grid insulation resistance

≥100

MΩ

Output Power

0.3

KW

Amplification factor

190

Measured when the positive current is 0.05A, and the positive pressure is 2KV and 1.5KV.

Electric parameter /limit value

Min.

Max.

Unit

Filament voltage

6.6

V

Anode DC voltage

1.25

KV

Anode DC current

210

mA

Anode dissipation power

125

W

Highest gate current

50

mA

Maximum operating frequency

30

MHZ

The highest temperature at the anode seal

220

℃

The highest temperature at the stem seal

180

℃

Maximum temperature of glass bulb

200

℃

Filament voltage

6.3

V

Anode voltage

750

V

Grid voltage

20

V

Anode current (zero signal)

130

mA

Anode current (maximum signal)

210

mA

Grid audio peak voltage

60

V

Effective load resistance

5

KΩ

Output power (when Dtot=5%)

40

W

Filament voltage

6.3

V

Anode voltage

1000

V

Grid voltage

20

V

Anode current (zero signal)

75

mA

Anode current (maximum signal)

300

mA

Grid audio peak voltage

195

V

Effective load resistance

8

KΩ

Output power (when Dtot=5%)

150

W

Filament voltage

6.3

6.3

6.3

V

Anode voltage

1250

1500

2000

V

Anode current

140

173

200

mA

Negative grid bias

-50

-70

-70

V

Grid current

45

40

30

mA

RF grid peak voltage

140

175

190

V

Grid excitation power

5.6

7

5.5

W

Anode output power

135

200

330

W
